Adaptors, Extensions & Uni-Joints

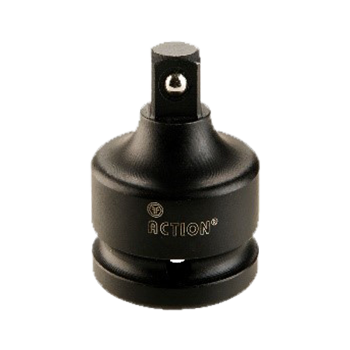

Adaptors
Female End “ Male End “ D2 L Steel Ball Pin Hole Lock Pin
1/2 3/4 30 48 64021024 64022024 64024024
3/4 1/2 44 56 64041016 64042016 64044016
3/4 1 44 63 64041100 64042100 64044100
1 3/4 54 75 64051024 64052024 64054024
1 3/4 54 250 64051524 X X
1 1-1/2 54 90 64051116 64052116 X
1-1/2 1 86 100 64061100 64062100 64064100
1-1/2 2-1/2 86 120 X 64062216 X
2-1/2 1-1/2 127 138 X 64082116 X
Adaptor with Dimension Diagram

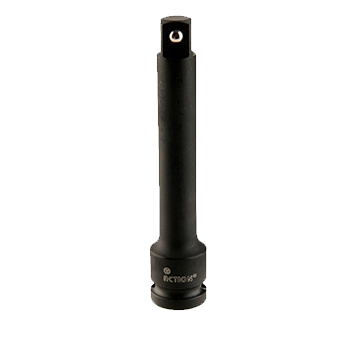

Extensions
Female End “ Male End “ D2 L Steel Ball Pin Hole Lock Pin
3/4 3/4 44 75 64541075 64542075 64544075
3/4 3/4 44 100 64541100 64542100 64544100
3/4 3/4 44 125 64541125 64542125 64544125
3/4 3/4 44 150 64541150 64542150 64544150
3/4 3/4 44 175 64541175 64542175 64544175
3/4 3/4 44 200 64541200 64542200 64544200
3/4 3/4 44 250 64541250 64542250 64544250
3/4 3/4 44 300 64541300 64542300 64544300
3/4 3/4 44 330 64541330 64542330 64544330
3/4 3/4 44 400 64541400 64542400 64544400
3/4 3/4 44 610 64541610 64542610 64544610
3/4 3/4 44 915 64541915 64542915 X
1 1 54 75 64551075 64552075 64554075
1 1 54 100 64551100 64552100 64554100
1 1 54 125 64551125 64552125 64554125
1 1 54 150 64551150 64552150 64554150
1 1 54 175 64551175 64552175 64554175
1 1 54 200 64551200 64552200 64554200
1 1 54 250 64551250 64552250 64554250
1 1 54 300 64551300 64552300 64554300
1 1 54 330 64551330 64552330 64554330
1 1 54 400 64551400 64552400 64554400
1 1 54 610 64551610 64552610 64554610
1 1 54 915 64551915 64552915 X
1-1/2 1-1/2 86 125 X 64562125 X
1-1/2 1-1/2 86 250 X 64562250 X
1-1/2 1-1/2 86 500 X 64562500 X
2-1/2 2-1/2 127 125 X 64582125 X
2-1/2 2-1/2 127 250 X 64582250 X
2-1/2 2-1/2 127 500 X 64582500 X
Extensions - Impact Tools Impact Accessories - with Dimension Diagram

Universal Joints
Female End “ Male End “ D2 L Steel Ball Pin Hole Lock Pin
3/4 3/4 44 90 6434A024 6434B024 6434C024
1 1 54 110 6435A100 6435B100 6435C100
1 1 58 118 6445A100 X X
1-1/2 1-1/2 86 182 64161116 64162116 X
2-1/2 2-1/2 152 248 64382216 X X
Universal Joints Impact Tools Impact Accessories with Dimension Diagram
